  • 暫無更多圖片。

無冷凝水電氣柜空調

更新:2019/12/2 20:05:17      點擊:
  • 品牌   擴杰
  • 型號
  • 描述

    可以根據用戶實際使用情況定制...

產品介紹

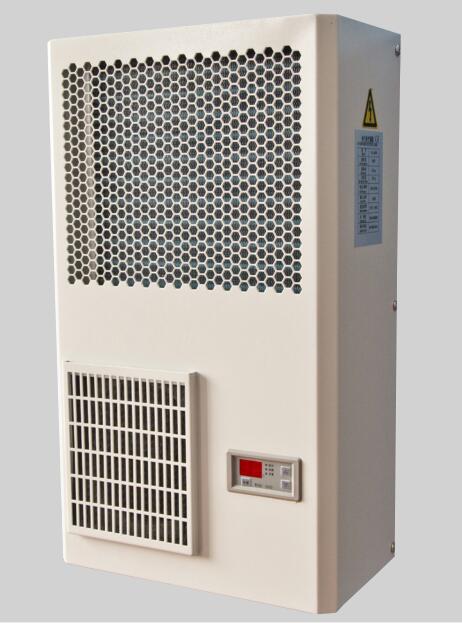

無冷凝水電氣柜空調
No-condensed-water electrical cabinet air conditioning

可以根據用戶實際使用情況定制


產品描述:
冷凝液電子蒸發:
滴落在配電柜中以及冷卻器蒸發器上的冷凝水被有效的蒸發,制冷機內部的蒸發器具有極高的蒸發功率。他將通過直接蒸發原理實現。

product introduction:
Condensate electronic evaporation:
Drop on the power distribution cabinet and cooler evaporator condensate was effective evaporation, the inside of the refrigerator evaporator has a very high evaporation power.It will direct evaporation principle of implementation.



產品優勢:
1. 安全性更高 無冷凝水滴泄漏到廠房地板上(無積水,無滑倒危險);
2. 時間方面的優點 取消了冷凝水罐排空這一過程;節省了人力這一循環.
3. 性價比更高,無需外配備冷凝水蒸發器。內置蒸發,外觀上更精美!
4. 可有效的預防冷凝水導致的漏電情況!
5. 采取輕量化結構,并且功率較高的熱電冷卻器在制冷過程中相當環保,其小型話結構與傳統的工業空調(帶冷凝水蒸發裝置)相比可節能40%以上!

Product advantage:
1. More safety  there is no condensed water drop leak to the workshop floor (no water, no slip)
2. The advantage of the time, cancelled the process of emptying condensing water ; save the human.
3. More cost-effective, without external equipped with condensed water evaporator. The built-in evaporation, more beautiful in appearance!
4. Effectively prevent condensation water caused by the leakage situation!
5. Power lightweight structure and high thermoelectric cooler in the cooling process is quite green, the small structure with the traditional industrial air conditioning (with condensate water evaporation device) can be saved over 40% of energy comparely!


無冷凝水機柜空調系列產品規格
No-condensed-water cabinet air-conditioning products specifications

訂貨號
Order No.

WSKT300

WSKT500

WSKT1000

WSKT1500

WSKT2000

工作電壓
Operating Voltage

單相220V/ 50Hz

外形尺寸
Dimensions
WxHxD (mm)

286x460x170

323x555x182

360x650x220

370x875x240

390x1010x240

制冷量
Cooling capacity

300W

500W

1000W

1500w

2000W

制冷劑
Refrigerant

R134a

工作溫度范圍
Operating temperature range

-5~+55℃

噪音水平 Noise Level (dB)

55

55

55

60

60

運行電流
Operating current

1.18A

1.69A

2.57A

3.73A

4.5A

重量 Weight

17Kg

23Kg

35Kg

40kg

60Kg

外觀顏色
Exterior Color

RAL7035

循環風量:外循環
Flow Rate:
the outer loop

230(m³/h)

250(m³/h)

385(m³/h)

780(m³/h)

810(m³/h)

循環風量:內循環
Flow Rate:
inner loop

120(m³/h)

145(m³/h)

180(m³/h)

270(m³/h)

320(m³/h)
