AE控制箱
更新：2019/12/2 20:11:35 點擊：
- 品牌 擴杰
- 型號 AE
- 描述
可以根據用戶實際使用情況定制尺寸...
產品介紹

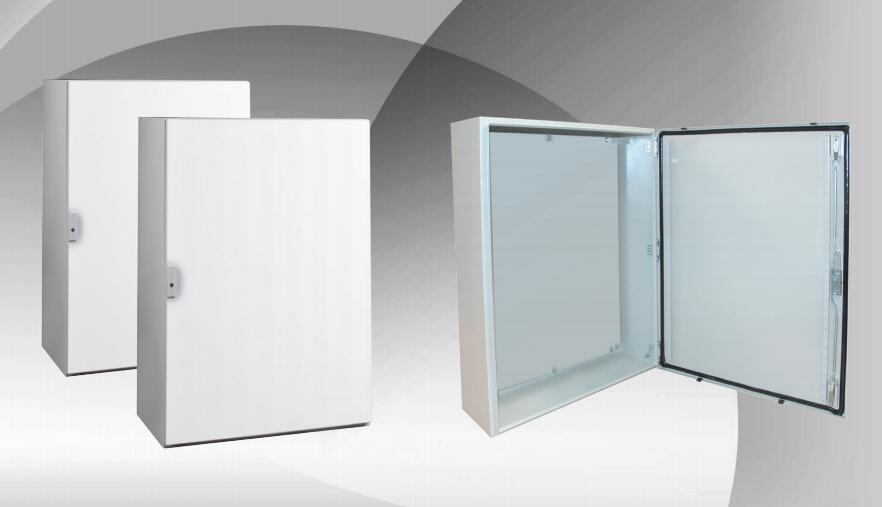

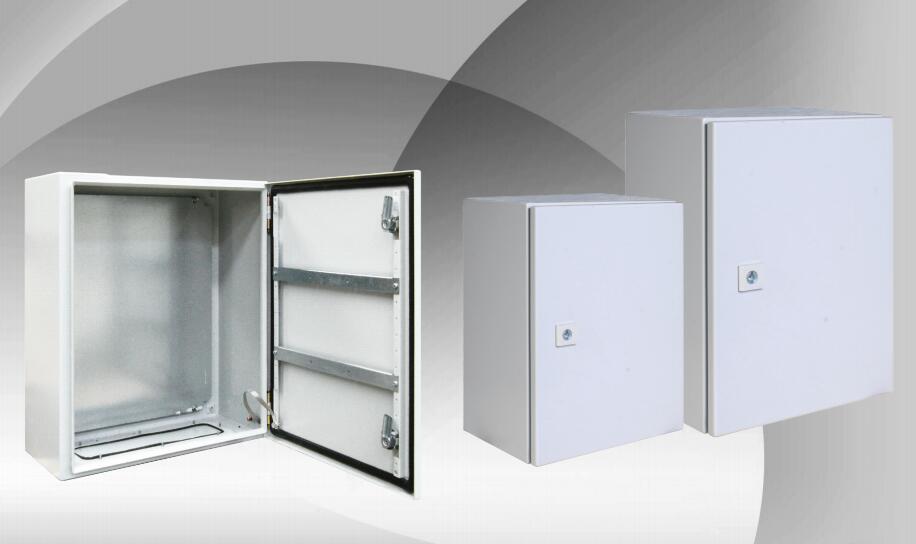

AE壁掛箱
產品特點 Features of products
● PU發泡密封條確保箱體達到IP56的防護等級
● 各種類型及尺寸的凸臺確保進出線方便
● 鍍鋅安裝板也可在箱體外做布線用
● 箱口多層保護槽不但起加固作用而且能 防止門板打開時臟物和水進入箱內
● 帶雙齒鎖芯的專業鎖系統開和關都極為便捷
● PU foaming sealing strip ensures a protection grade of IP56 to box body
● Bosses of various types and sizes allow easy installation of inlet/outlet lines
● Galvanized mounting plate can also be used for wiring outside the box
● Multiple protection grooves are designed at the box opening can not only reinforce the structure but also prevent the entry of dirt or water when the door is opened
● Professional lock system with double-teeth cylinder allows easy locking/unlocking
|
序號 |
訂貨號(RAL7035) |
訂貨號(RAL7032) |
寬度 |
高度 |
深度 |
|
1 |
AE203012500 |
AE203012600 |
200 |
300 |
120 |
|
2 |
AE203021500 |
AE203021600 |
200 |
300 |
210 |
|
3 |
AE304021500 |
AE304021600 |
300 |
400 |
210 |
|
4 |
AE383021500 |
AE383021600 |
380 |
300 |
210 |
|
5 |
AE383821500 |
AE383821600 |
380 |
380 |
210 |
|
6 |
AE405021500 |
AE405021600 |
400 |
500 |
210 |
|
7 |
AE386021500 |
AE386021600 |
380 |
600 |
210 |
|
8 |
AE505021500 |
AE505021600 |
500 |
500 |
210 |
|
9 |
AE606021500 |
AE606021600 |
600 |
600 |
210 |
|
10 |
AE607621500 |
AE607621600 |
600 |
760 |
210 |
|
11 |
AE607635500 |
AE607635600 |
600 |
760 |
350 |

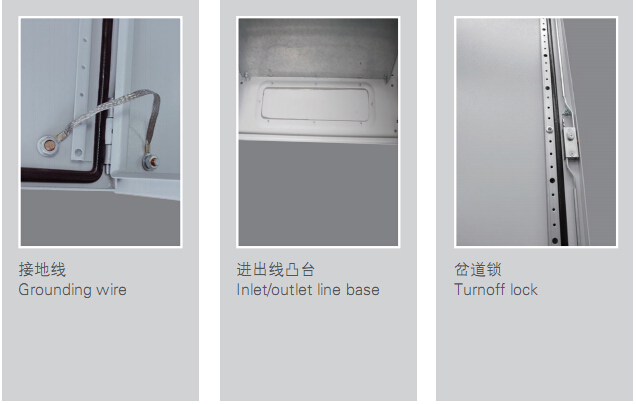

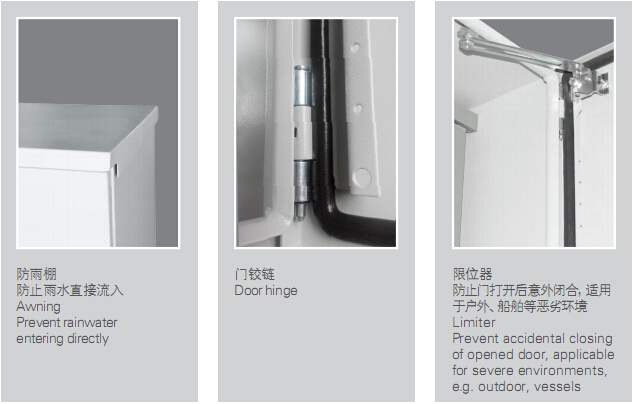

AE立式控制箱
產品特點 Features of products
● PU發泡密封條確保箱體達到IP56的防護等級
● 各種類型及尺寸的凸臺確保進出線方便
● 鍍鋅安裝板也可在箱體外做布線用
● 箱口多層保護槽不但起加固作用而且能防止門板打開時臟物和水進入箱內
● 帶雙齒鎖芯的岔道鎖系統開和關不但極為便捷，而且確保了其通用性
● 兩側帶折邊的安裝板和安裝支架最大限度的確保了安裝強度
● PU foaming sealing strip ensures a protection grade of IP56 to box body
● Bosses of various types and sizes allow easy installation of inlet/outlet lines
● Galvanized mounting plate can also be used for wiring outside the box
● Multiple protection grooves are designed at the box opening can not only reinforce the structure but also prevent the entry of dirt or water when the door is opened
● Professional turnoff lock system with double-teeth cylinder allows easy locking/unlocking and universality
● Mounting plate and supporting rack with flanges on both sides ensures the max. mounting strength
|
序號 |
訂貨號(RAL7035) |
訂貨號(RAL7032) |
寬度 |
高度 |
深度 |
|
1 |
AE608025500 |
AE608025600 |
600 |
800 |
250 |
|
2 |
AE609030500 |
AE609030600 |
600 |
900 |
300 |
|
3 |
AE801030500 |
AE801030600 |
800 |
1000 |
300 |
|
4 |
AE601230500 |
AE601230600 |
600 |
1200 |
300 |
