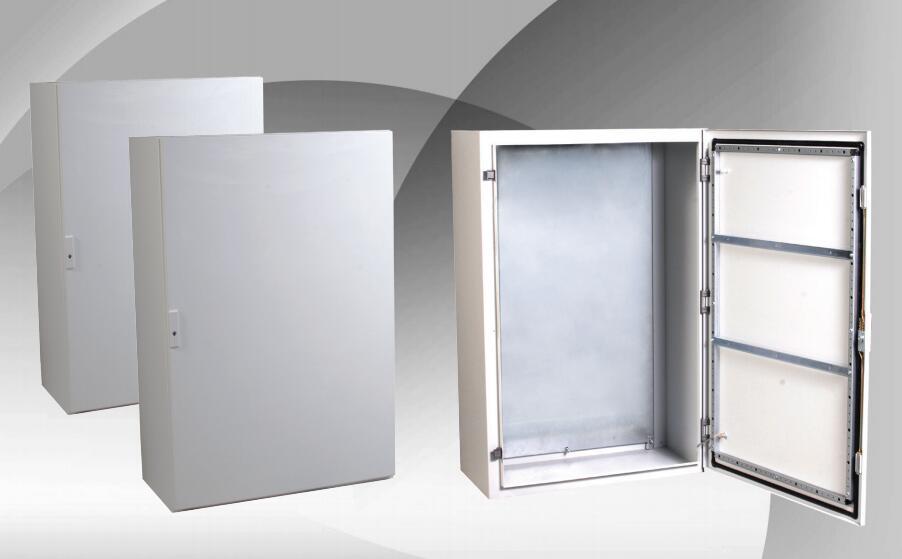

AK豪華立式控制箱
更新：2019/12/2 20:11:25 點擊：
- 品牌 擴杰
- 型號 AK
- 描述
可以根據用戶實際使用情況定制尺寸...
產品介紹
產品特點 Features of products
● PU發泡的密封條確保箱體達到IP56的防護等級

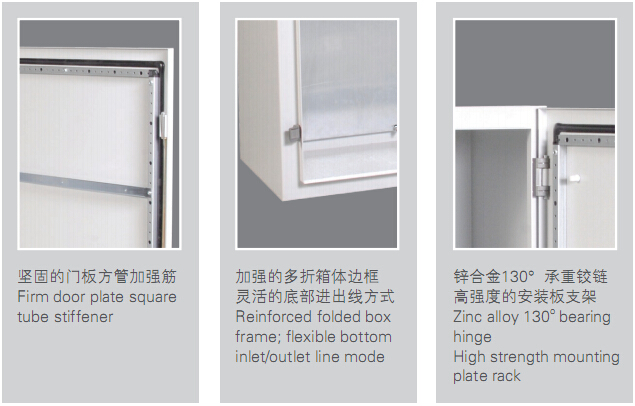

● 加寬的箱體邊框、承重鉸鏈、門板方管加強筋確保箱體系統的高強度
● 鍍鋅安裝板和高強度的安裝板支架確保安裝器件的可靠性(可在箱外做布線用)
● 底部進出線裝置確保進出線的靈活方便
● 可選的運輸?shù)醐h(huán)系統確保運輸?shù)姆奖憧旖?br />
● PU foaming sealing strip ensures a protection grade of IP56 to box body
● Widened box frame, bearing hinge and door plate square tube stiffener ensures high strength of the box body
● The mounting plate and high-strength mounting rack ensures the reliability of the mounting parts (can be used for wiring outside the box)
● Bottom inlet/outlet line device allows easy installation of inlet/outlet lines
● Optional lifting ring system allows easy handling
|
序號 |
訂貨號(RAL 7035) |
訂貨號(RAL 7032) |
寬度 |
高度 |
深度 |
|
1 |
AK801230500 |
AK801230600 |
800 |
1200 |
300 |
|
2 |
AK101030500 |
AK101030600 |
1000 |
1000 |
300 |
|
3 |
AK101230500 |
AK101230600 |
1000 |
1200 |
300 |
|
4 |
AK601240500 |
AK601240600 |
600 |
1200 |
400 |
|
5 |
AK801240500 |
AK801240600 |
800 |
1200 |
400 |
|
6 |
AK121240500 |
AK121240600 |
1200 |
1200 |
400 |
