機柜空調
更新：2019/12/2 20:05:03 點擊：
- 品牌 擴杰
- 型號
- 描述
可以根據用戶實際使用情況定制...

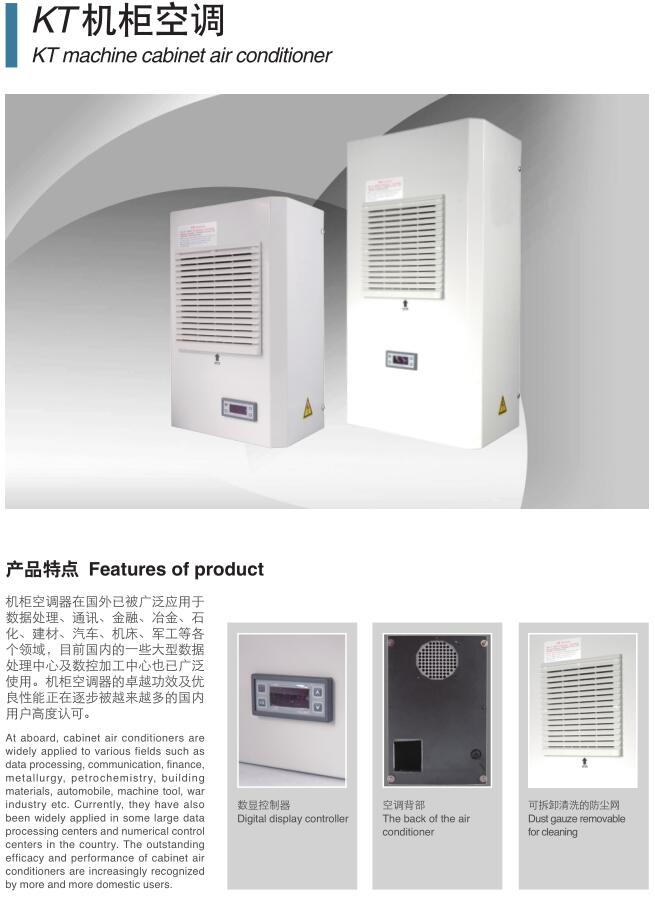

產品介紹
可以根據用戶實際使用情況定制
產品特點：
控制柜內部元器件密集、發熱量大，由于散熱不良、升溫過高而導致的系統故障相當普遍。傳統的冷卻方式是風扇直接降溫，散熱效果差。機柜空調，可有效降低控制柜內部溫度，并能阻止灰塵、濕氣及腐蝕性氣體進入控制柜內部，適用于可靠性要求較高的電氣控制柜、計算機（服務器）機柜的溫、濕度控制，是電控系統可靠工作的有力保障。
Features of product：
The elements in the control cabinet are dense and have a large heating value. System failure is very common due to bad heat dissipation and high temperature rise. The traditional cooling
method is to directly reduce temperature with a fan, which has a poor heat dissipation effect. The cabinet air conditioner can effectively reduce temperature in the control cabinet and prevent dust, moisture and corrosive gases from entering the control cabinet. The air conditioner is used for control on temperature and humidity of electrical control cabinets and computer (server) cabinets with high reliability requirements to ensure reliable operation of an electrical control system.
|
KT機柜空調系列產品規格 KT cabinet air-conditioning products specifications |
|||||||||
|
訂貨號 |
KT300 |
KT450 |
KT600 |
KT800 |
KT1000 |
KT1500 |
KT2000 |
KT2500 |
KT3200 |
|
工作電壓 |
220VAC 50/60Hz ±10% |
||||||||
|
外形尺寸 |
286x445 |
286x500 x170 |
350x630 |
350x630 |
360x670 |
370x855 |
390x |
435x |
436x
113 |
|
制冷量 |
300W |
450W |
600W |
800W |
1000W |
1500W |
2000W |
2500W |
3200W |
|
運行電流 |
1.2A |
1.5A |
2.1A |
2.3A |
3.9A |
4.0A |
5.0A |
6.3A |
7.3A |
|
制冷劑 |
R134a |
||||||||
|
工作溫度范圍 |
制冷工作溫度(Cooling Temperature)：+20~+55度 |
||||||||
|
噪音 Noise |
55dB |
55dB |
60dB |
60dB |
65dB |
65dB |
65dB |
65dB |
65dB |
|
重量 Weight |
15Kg |
16Kg |
24Kg |
25Kg |
31Kg |
39Kg |
47Kg |
52kg |
64kg |
|
外觀顏色 |
RAL7035 |
||||||||
|
循環風量：外循環 |
150m³/h |
230m³/h |
290m³/h |
340m³/h |
300m³/h |
780m³/h |
810m³/h |
840m³/h |
1150m³/h |
|
循環風量：內循環 |
70m³/h |
120m³/h |
230m³/h |
230m³/h |
180m³/h |
270m³/h |
320m³/h |
410m³/h |
610m³/h |
|
測試工況:電柜內側干球溫度:35℃,濕球溫度:26℃,電柜外側干球溫度:35℃ Test conditions: electrical cabinet inside of the dry bulb temperature: 35 ℃, wet bulb temperature: 26 ℃, power outside of the cabinet dry bulb temperature: 35℃ |
|||||||||
