88懸臂系統
更新：2019/12/2 20:08:54 點擊：
- 品牌 擴杰
- 型號 88
- 描述
...
產品介紹

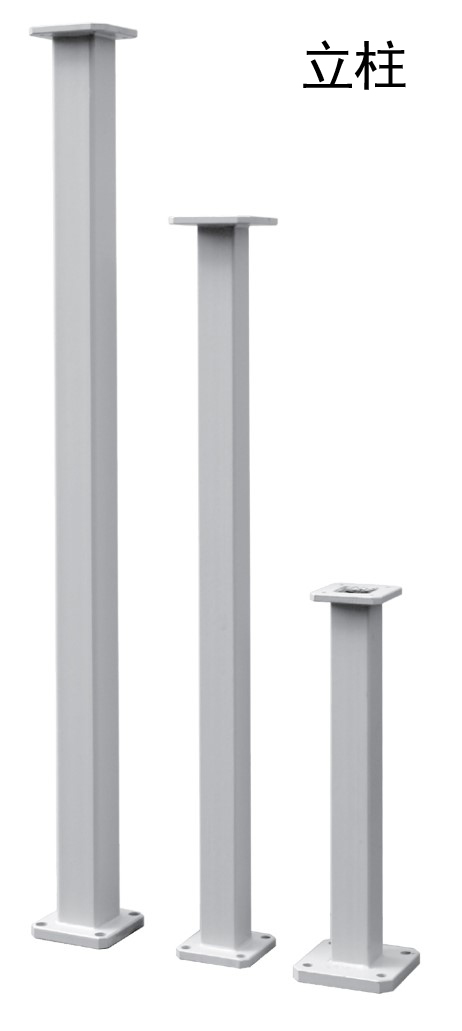

立柱：
Column：
立柱，路為標準懸壁組件無法實現的結構而定制的輔助支撐配件，全部采用鋼管和鋼板通過焊接而成，灰白色外表噴塑與懸壁組件混為一體。
Column is the custom-made auxiliary support part for structures not fit for standard cantilever wall units, it is totally made of steel tube and steel plate by welding, plastic spraying coated to a hoar appearance to form an integrity with the cantilever wall unit.
根據不同的設計要求，立柱方形鋼管有80、100、120mm不同規格，以符合整體美觀效果。量下連接法蘭應不同的對接懸壁組件和安裝方式而定制。
The square steel tube for column has different specification of 80, 100, 120mm according to different design requirements so as to meet the overall esthetic appearance effect. The coupling flanges shall be customized in accordance with different jointing cantilever wall units and installation mode.
立柱訂貨號：
Order number for column:
LZ.XXXX.08 80方立柱 LZ.XXXX.08 80 square column
LZ.XXXX.10 100方立柱 LZ.XXXX.10 100 square column
LZ.XXXX.12 120方立柱 LZ.XXXX.12 120 square column
舉例：
Example:
1.5m 80方立柱 LZ.1500.08
1.5m 80 square column LZ.1500.08
0.75 m 100方立柱 LZ.0750.10
0.75 m 100 square column LZ.0750.10

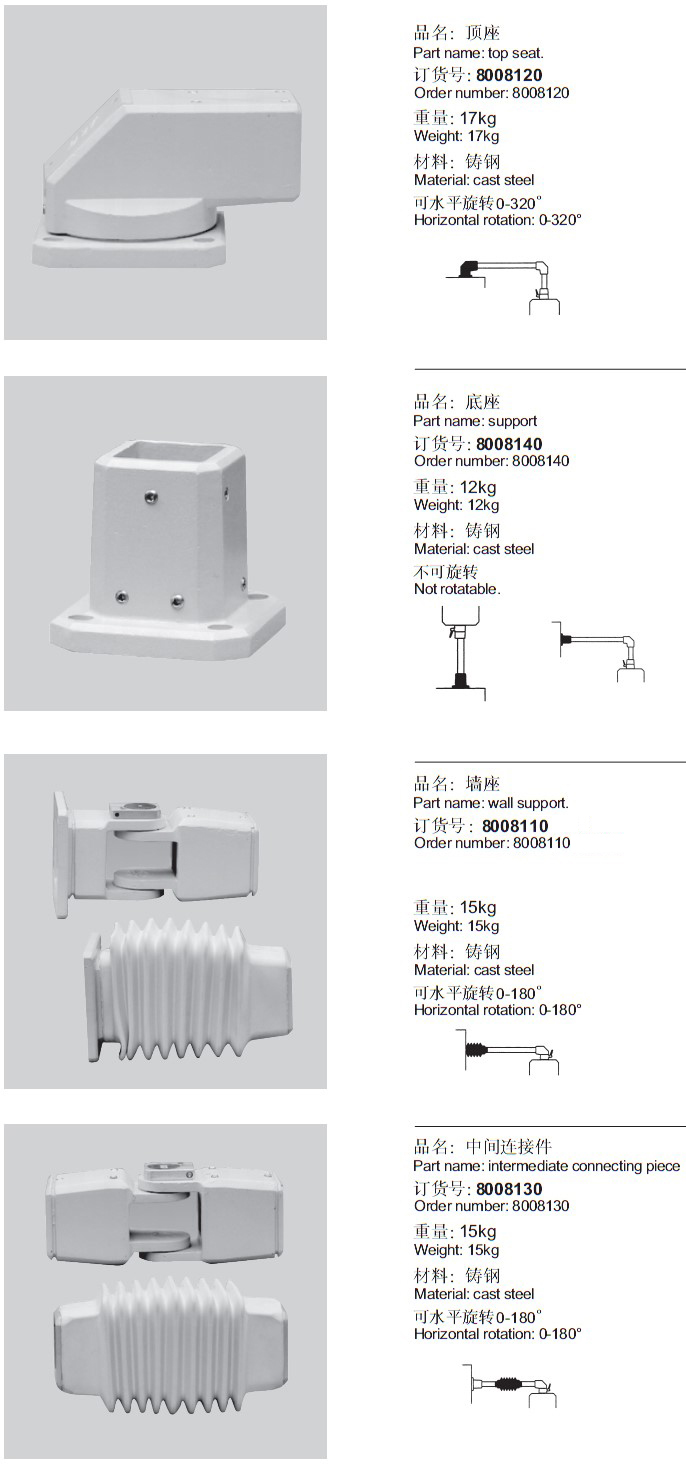

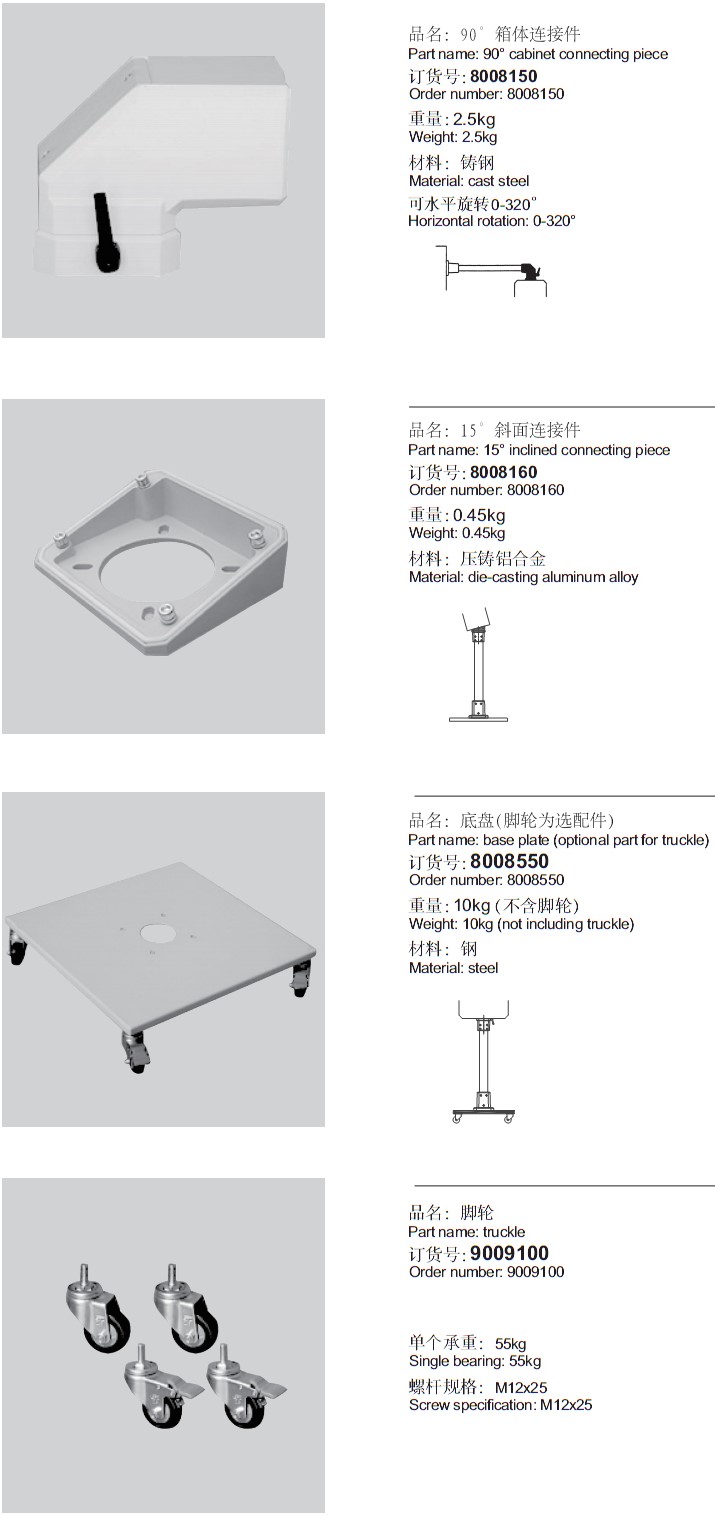

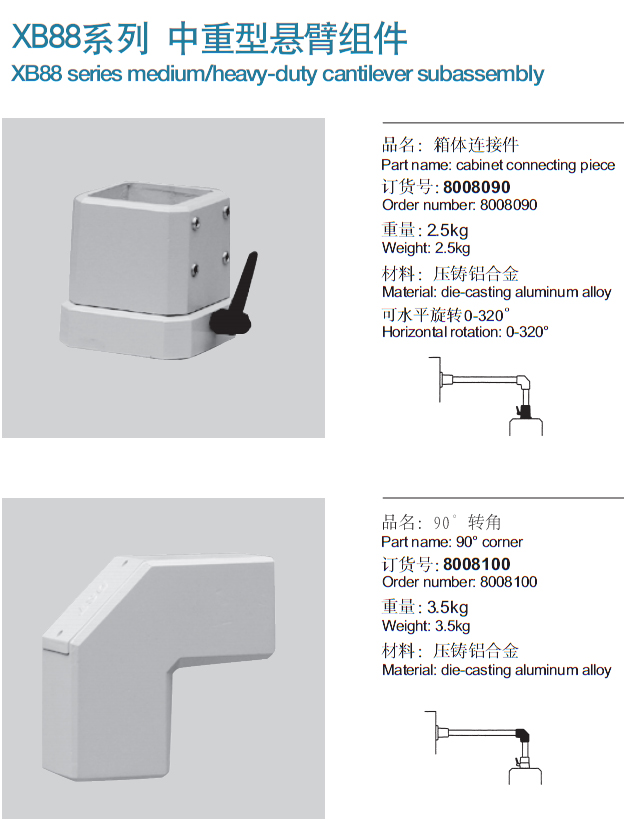

| 訂貨號(88懸臂系列) | ||
|
序號 |
名稱 |
訂貨號 |
|
1 |
箱體連接件 |
8008090 |
|
2 |
90°箱體連接件 |
8008150 |
|
3 |
90°轉角 |
8008100 |
|
4 |
中間連接件 |
8008130 |
|
5 |
頂座 |
8008120 |
|
6 |
水平墻座 |
8008110 |
|
7 |
底座 |
8008140 |
|
8 |
15°斜面連接件 |
8008160 |
|
9 |
底盤 |
8008550 |
|
10 |
腳輪 |
9009100 |
|
11 |
80方管-500mm |
8080500 |
|
12 |
80方管-1000mm |
8081000 |
|
13 |
80方管-1500mm |
8081500 |
|
14 |
80方管-2000mm |
8082000 |
|
15 |
80方管-2500mm |
8082500 |
|
16 |
80方管-3000mm |
8083000 |
