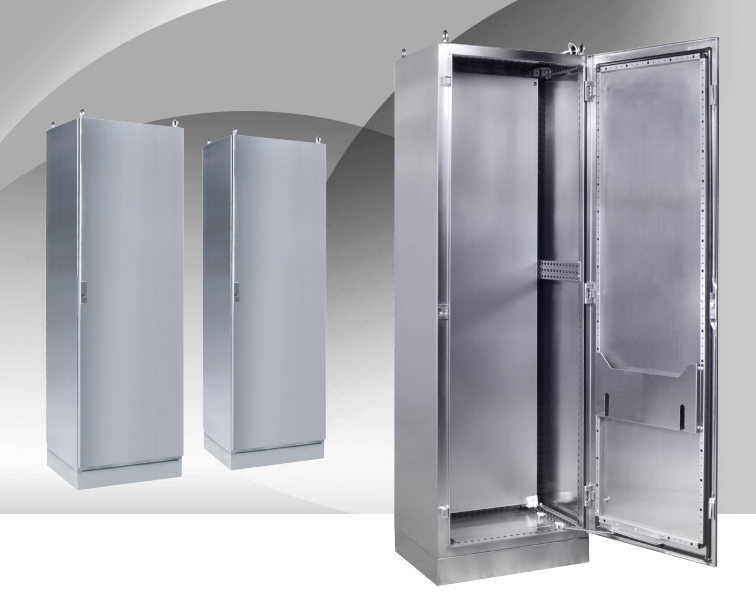

BES不銹鋼控制柜
更新：2019/12/2 20:01:15 點擊：
- 品牌 擴杰
- 型號 BES
- 描述
...
產品介紹
產品特點 Features of product
● 獨立式電柜，不適宜并柜使用
● 門板離地面高，約25mm，確保開門靈活順暢
● 獨特的五折型材整體焊接而成的主體框架不但確保柜體的高強度而且確保柜體的防護等級達到IP56
● 特殊的門板方管加強系統可以用螺絲固定在門板上，便于拆卸
● 框架上密布的25mm 間距模數孔確保安裝的靈活性、通用性
● 鍍鋅安裝板可以利用塑料滑塊通過導軌從正面推入柜內，且兩邊有U型折邊使安裝板更牢固和更便于搬運

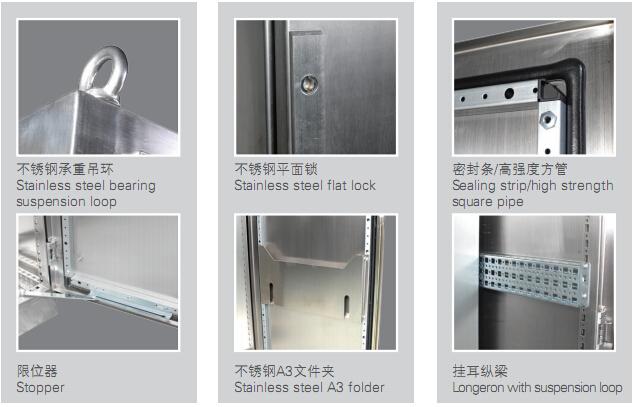

● 專業的不銹鋼岔道鎖、不銹鋼承重吊環以及各種功能性的附件彰顯柜體豪華品質
● Stand-alone electric cabinet, unsuitable for combination
● Ground clearance of door plate is sufficient, about 25mm, ensuring flexibility and smoothness of door opening.
● IP56The main body frame specially fabricated by five-fold section through whole welding ensures not only high strength but also the Protection grade of IP56.
● Special door plate square pipe reinforcement system can be fixed on the door plate with screws, easy for dismantlement.
● Module holes densely distributed at 25mm spacing on the frame guarantee flexibility and universality of installation
● The mounting plate can be pushed into the cabinet from the front through guide rail by making use of plastic sliders. U-shape folded edges at the two sides facilitate fastening and handling of the mounting plate.
● Professional stainless steel turnoff lock, stainless steel bearing suspension loops and other accessories having various functions bring out luxury character of cabinet body.
|
序號 |
訂貨號(不銹鋼304) |
寬度 |
高度 |
深度 |
|
1 |
BES601640304 |
600 |
1600 |
400 |
|
2 |
BES601650304 |
600 |
1600 |
500 |
|
3 |
BES601840304 |
600 |
1800 |
400 |
|
4 |
BES601850304 |
600 |
1800 |
500 |
|
5 |
BES602050304 |
600 |
2000 |
500 |
|
6 |
BES801650304 |
800 |
1600 |
500 |
|
7 |
BES801840304 |
800 |
1800 |
400 |
|
8 |
BES801850304 |
800 |
1800 |
500 |
|
9 |
BES802050304 |
800 |
2000 |
500 |
|
10 |
BES802060304 |
800 |
2000 |
600 |
|
11 |
BES101840304 |
1000 |
1800 |
400 |
|
12 |
BES121650304 |
1200 |
1600 |
500 |
|
13 |
BES121840304 |
1200 |
1800 |
400 |
|
14 |
BES122050304 |
1200 |
2000 |
500 |
